Floorplan - 2008 Keystone RV Big Sky 365REQ
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

-
Sleeps 4
-
4 Slides
-
Rear Living AreaFront Bedroom
-
38ft Long
-
12,780 lbs

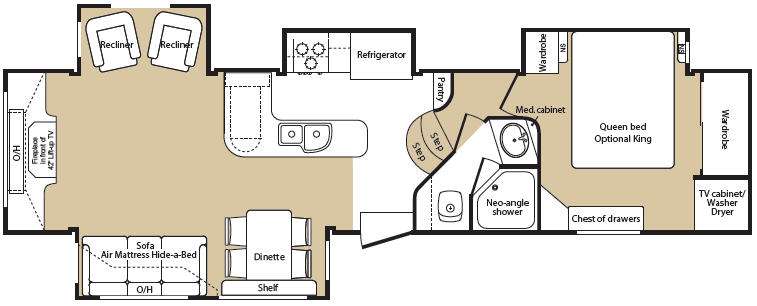

365REQ Floorplan


Specifications
Sleeps | 4 | Slides | 4 |
Length | 38 ft 4 in | Ext Width | 8 ft |
Ext Height | 12 ft 9 in | Hitch Weight | 2210 lbs |
Dry Weight | 12780 lbs | Cargo Capacity | 3430 lbs |
Fresh Water Capacity | 64 gals | Grey Water Capacity | 76 gals |
Black Water Capacity | 38 gals | Tire Size | 235/85R16E |
Furnace BTU | 35000 btu | VIN | 4YDF3652884710344 |
Description
Quad Slide Big Sky Fifth Wheel w/Rear Fireplace w/42" TV, 2 Recliners Slide Area, HAB Sofa w/Air Mattress & Dinette w/Chairs Slideout, Shelf Above Table, L-Shaped Counter w/Double Kitchen Sink & Overhead Cabinets, 3 Burner Range & Refrigerator Slide, Pantry, Step Up to Side Aisle Bath w/Angle Shower, Lav., Med. Cabinet, Front Queen Bed Slide w/Wardrobe & Nightstands, Opt. King Bed, Chest of Drawers, Wardrobe w/Sliding Door, TV Cabinet/Washer/Dryer and More!
Features
Standard Features (2008)
Exterior
- Heavy-duty Dyna-span roof and floor decking
- Double welded aluminum-framed walls and floor
- 2" laminated exterior walls with double layer plywood backing
- Heavy Duty 5" steel C-channel roof rafters
- Seamless rubber roof with 12 year manufacturer´s warranty
- Outstanding exterior pass-thru cargo storage with dual 12V lights
- Insulated high-gloss baggage doors with side mount hinges on road side
- Radius lower fender skirt wrapped into underbelly for improved aerodynamics
- Heated, insulated and enclosed holding tanks for zero degree use
- Fully enclosed underbelly with heavy duty ABS panels and reflective foil insulation
- 16" steel belted radial tires
- Heavy duty 8-lug aluminum wheels
- High-rise extra-wide folding steps for lower entry height
- Flip-up shelf in front cargo area
- "Wide Stance" power front jacks with adjustable snap pins
- In-floor heated water lines near furnace duct for added radiant heat
- Two Patio scare lights: door and roadside
- Full length rain gutters with down spouts
- Full sized 30" wide entry door with screen and dead bolt lock
- Fold-away entry/exit handle
- 110 volt outlet in basement area
- Spare tire and crank down carrier
- Deep tinted safety glass windows that all open for ventilation
- Egress/exit emergency escape windows
- Lexan clearance and marker lights
- "Safety-view" rear lighting
- "Perma-seal" full perimeter slide room wiper and bulb seals
- Extended heavy duty hitch pin and break away switch
Interior
- "Big Sky Cherry" hardwood cabinet doors and drawers
- Pre-drilled and screwed cabinet construction
- High-density sculptured carpeting and residential rebound padding
- Premium "Big Sky" designer upholstery and throw pillows with fabric protector
- Deluxe entertainment center with DVD/CD storage area
- Heavy-duty residential full extension steel drawer glides
- Extra tall 6´ 5" slide room ceiling height with flush-floor design
- Large residential overhead cabinets mounted in steel backer plates
- Computer work station with data port (most models)
- Flush floor slide rooms in living room area with R-14 reflective foil insulation
- Day/night shades throughout with designer vertical blind on "Mountain View" window
- Designer ceiling fan with pewter light fixture
- Fantastic Fan with rain sensor in kitchen area
- Deluxe crown molding trim at ceiling
- "Big Sky Cherry" accent trim on interior window frames
- Designer pleated window curtains and valences
- Heavy-duty textured vinyl clad ceiling panels
- Halogen reading lights under overhead cabinets
- Deluxe pewter 3 bulb entry door and dinette lights with glass fixtures
Kitchen
- Residential sized kitchen appliances
- Dual molded kitchen sink bowls with covers, cutting board and dish drain rack
- Deluxe high-arch pewter kitchen faucet with pull-out sprayer
- Extra wide and deep drawers with full extension guides and hardwood fronts
- Residential-sized overhead cabinets mounted in heavy-duty steel backer plates
- Heavy-Duty linoleum kitchen flooring and entryway
- Designer Back splash for kitchen wall areas
- "Big Sky" dinette table and wall cabinet counter top
- "Big Sky Cherry" refrigerator door panels
- Deluxe pantry area
- Trash receptacle
- Large LP oven
- Pull-out kitchen workstation (N/A 350RLQ)
- Cookbook storage shelf (N/A 350RLQ)
Bath
- Textured glass shower enclosure
- Molded shelves and footrest in shower
- Adult height vanity with pewter faucet
- Seamless molded residential-sized bath sink
- Decorative pewter vanity light, towel ring, and paper holder
- Residential-style medicine cabinet with mirrored door
- Linen shelf with pewter towel bar
- Residential sized porcelain toilet with foot pedal flush
- Linoleum flooring in bathroom area
- Window with mini-blind in commode area
- Power vent fan in commode
Bedroom Suite
- Single level bedroom/bath suite
- King sized bed deck
- Under bed storage with lift assist struts
- Residential-sized chest of drawers with full extension guides
- Cable and satellite TV connections with digital RG6 cable
- Shoe storage area in wardrobe
- Bedside night stand shelves
- Designer window valances with Day/Night Shades
- Enlarged residential sized front closet with reinforced shelf
- Smoke detector
- 110V outlet in front bedroom closet near bedside
Utilities
- 12 gallon water heater w/quick recovery system
- Remote water heater switch
- 35,000 BTU furnace with zero degree use rating
- 15,000 BTU A/C with quick cool vent
- No-fuss, "Freeze-guard" winterizing kit
- "Access One" Systems monitor panel and switch location
- 75-amp power converter, 50 amp electrical service
- 50-amp detachable, marine power cord
- Automatic ignition furnace with direct flow in-floor ducts
- Phone jack / data port
- Carbon monoxide and LP gas detector
- Sewer hose storage area and battery box
- Battery disconnect switch
- Quick connect coil hose with sprayer
- Central electric fuse and breaker panel with LED light indicator for blown fuses
- Easy-Access" quick fill dual LP bottles with auto change-over
- Black tank waste flush system
- "High-flow" water pump
- New “Big Sky” raised-arch roof profile
- High gloss gel-coated fiberglass exterior walls and doors
- Deluxe power patio awning
- “Big Sky” aerodynamic front and rear fiberglass caps
- Premium “Big Sky” polished aluminum wheels
- Big Screen 32” LCD TV with pull-out swivel tray
- Six disc DVD/CD player with 5.1 surround sound
- 12 cubic foot 4 door residential refrigerator
- Two “Big Sky” designer glider/recliners w/wood trim
- Air mattress hide-a-bed sofa with storage drawer and wood trim
- Wall mounted pedestal-free dinette table w/wall cabinet and 4 “Easy-Store” chairs
- 30” residential convection/microwave oven with integrated exhaust fan
- High Gloss Polished solid surface kitchen counter tops
- 5,100 BTU electric fireplace w/ deluxe mantel
- “Big Sky Cherry” cabinets with pewter hardware
- “Big Sky Cherry” designer slide room fascia
- “Big Sky Cherry” crown molding trim
- “Big Sky Cherry” designer bath door with decorative glass and mirror insert
- Deluxe “Big Sky” exterior graphics and logos
Big Sky Value Package
- 6750 lb. Dexter E-Z lube axles
- Mor/Ryde suspensions system
- Power front and rear stabilizer jacks
- High output range w/ auto ignite and flush mount cover
- Roof ladder
- Outside shower
- Sky dome over shower
- Brinks hidden safe
- Deluxe porcelain toilet
- Stackable or combo Washer/dryer/ prep
- “Big Sky Cherry” sofa and end table with pewter lamp
- “Stor-More” drawers in bedroom front closet
- Arctic Insulation Package tested for zero degree use
- Central vacuum system
- Deluxe king sized pillow top inner-spring mattress
- Padded fabric headboard with wood trim accent
- 20” flat screen bedroom TV with swing out cabinet
- Linoleum and fire extinguisher at entryway
- Two-tier kitchen sink-covers with dish drain rack and cutting board
- “Big Sky” designer pewter reading lights over bed, sofa and recliner areas
- Lighted, cedar-lined bedroom closet with shoe rack
- High Gloss polished solid surface bath vanity and molded sink
- Marbled shower with glass enclosure and pewter towel bar
- Pewter shower spray head with adjustable height and soap dish
- Basement convenience center for outside plumbing and electric connections
- Front cap design improves overall turning radius
- Hitch Vision Mirror on front cap
- Hitch light
- Wire and frame for 2nd Air Conditioner
- Vented attic
- Deep tinted safety glass windows
- TV antenna with digital/analog signal booster
- Hydraulic slide room selector switch
- Whole coach water filtration system
- Laundry chute to basement
- Water heater by-pass kit and winterization valve
- Enclosed and insulated waste dump valves
- TV connection in basement
- Slide-room awning package (quad slides)
- Dual pane safety glass windows
- 18” wide full width pass-thru basement slide tray
Big Sky Interior Options
- Designer garden tub w/glass enclosure IPO shower
- Soft Touch/Leather Recliner/Glider IPO Cloth
- 2nd Soft Touch/Leather Recliner/Glider IPO Cloth
- Soft Touch/Leather Sofa IPO Cloth
- Additional High back dinette/desk chair
- Second 13,500 BTU air conditioner in bedroom
- Fantastic Fan w/ rain sensor in Bedroom, Bath, or commode area(s)
- Generator prep (designed for Onan LP Gas 5.5 KW specs)
- 5.5 KW LP Generator in front storage area (deletes flip-up shelf)
- Combination Washer/Dryer
- Stacked Washer/Dryer
- Mor/Ryde hitch pin
Roof (R-14)
- One-Piece EPDM Rubber Roof Membrane
- Aluminum Radius Roof Transition Molding
- 3/8” Roof Decking
- 5” Fabricated galvanized Steel Truss Rafters on 16” Centers
- Fiberglass Insulation
- Ceiling Decking with Vinyl
- Aluminum wrapped AC duct
- Vented attic
- 15,000 BTU A/C
- Wire Harness
- Rear Ladder
- Gel-Coated High-gloss Fiberglass
- 1/8” Luan Board
- Second Layer 1/8” Luan Board with Seams Staggered
- Solid Block Insulating Foam
- Interior Decorator Board
- 2” Welded Aluminum Wall Studs
- Electro-Galvanized Sheet (EGS) Metal Backing Strips
- 30"x74" Entry Door with Window
- Fold-Away Grab Handle
- Aluminum Patio Awning
- Scare Light
- Fiberglass front cap with improved “Turn Right” turning radius and hitch vision mirror.
- Heavy duty high-gloss insulated baggage doors
- Powder-coated 10” Steel “Rolled” I-Beam
- 3” Welded Aluminum Floor
- 3” Large-Capacity Heat Duct
- 1/4” ABS Underbelly
- Astro-Foil Insulation (97% Heat Reflection)
- Full Radius-wrap Aluminum Enclosure
- Moisture Barrier
- Fiberglass Insulation
- 5/8” Seamless Floor Decking
- Rebound Carpet Pad
- Residential-Grade Textured Carpeting with Stain Protectant
- 2” Heat Duct from Furnace into underbelly
- Enclosed and Insulated Water Lines
- LP Bottle
- Service Bay
- Heavy-duty Linoleum
- Hitch Pin
- Easy Access Adjustable Snap Jack Pins
- Heavy Duty 8-Lug Aluminum Wheels
See us for a complete list of features & available options!
All standard features and specifications are subject to change.
